Straw Pelleting Systems

The OGM-1.5A Pelleting Systems are designed to pellet a range of dry materials, from straw and wood to paper and plastic. The key to successful, trouble free pellet production is the pellet press. The OGM-1.5A 75kw pellet press, is made to a very high standard, being able to produce up to 1.5 tons of straw pellets per hour. This in return gives you a very low power consumption per ton of pellets.

The OGM-1.5A is the only pelleting system on the market, where the whole system from start to finish can be bought from one company and controlled by one control panel. Where all material flow rates and motor sizes have been calculated to give the most energy efficient, trouble free pelleting system available.

For customers requiring a higher output than the 1.5 ton per hour from one pellet press, there is now the option to have 2 x 75kw presses running in one system. Producing up to 3 tons per hour on straw, depending on quality and humidity.

  • 75KW Press with batcher and conditioner (stainless steel upgrade available)
  • Screw Auger
  • Cooler and Elevators
  • Sieves
  • Belt conveyor and bulk bag filling hopper
  • Electrical control panel
  • Water applicator system

Additional to the Basic unit:

  • 10 meter bale conveyor and access platform (other lengths available)
  • 37kw bale shredder
  • Stone trap with magnets
  • 75kw hammer mill (90kw hammer mill available)
  • Electrical control panel

Wood Pelleting Systems

The OGM-1.5A Pelleting System is designed to pellet a range of dry materials, from straw and wood to paper and plastic. The key to successful, trouble free pellet production is the pellet press. The OGM-1.5A 75kw pellet press, is made to a very high standard, being able to produce up to 1.5 tons of straw pellets per hour. This in return gives you a very low power consumption per ton of pellets.

The OGM-1.5A is the only pelleting system on the market, where the whole system from start to finish can be bought from one company and controlled by one control panel. Where all material flow rates and motor sizes have been calculated to give the most energy efficient, trouble free pelleting system available.

For customers requiring a higher output than the 1.5 ton per hour from one pellet press, there is now the option to have 2 x 75kw presses running in one system. Producing up to 3 tons per hour on straw, depending on quality and humidity.

  • 75KW Press with batcher and conditioner (stainless steel upgrade available)
  • Screw Auger
  • Cooler and Elevators
  • Sieves
  • Belt conveyor and bulk bag filling hopper
  • Electrical control panel
  • Water applicator system

  • 15m3 bulk hopper (other sizes available)
  • 25mm screener and auger
  • Stone trap and magnets
  • 45kw, 75kw & 90kw hammer mill(depending on chip size)
  • Electrical control panel

250kg/hr Sawdust Pelleting System

Complete pelleting system consisting of the following;

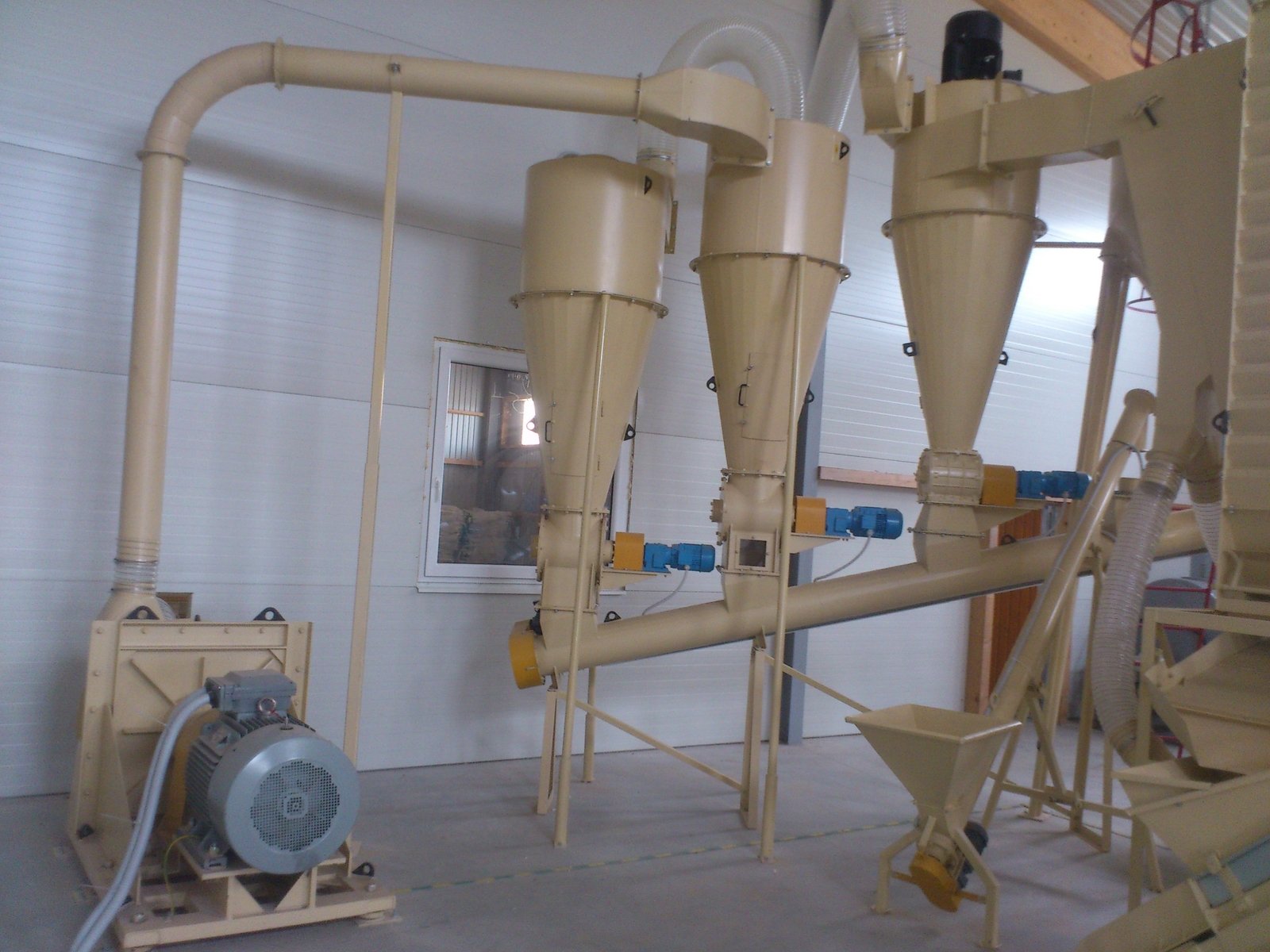

  • Hammer mill for milling wood chip to saw dust and blowing saw dust to cyclone ready for pelleting.
  • Cyclone to remove saw dust from air flow and deliver saw dust to hopper.
  • Hopper to hold and meter out saw dust to pellet press.
  • Pellet press (15kw) with 6mm die and two rollers to press the saw dust into wood pellets.
  • Vibrating screen to remove dust particles from wood pellets. (screenings are returned to hopper to be pelleted again)
  • Ventilator to cool the wood pellets ready for storage and packing.
  • Control panel with PLC, so that the whole system can be controlled automatically from one touch screen. This will also automatically control the moisture of the saw dust coming to the pellet press by adding addition water if saw dust is too dry. (Saw dust must be supplied at 15% moisture or below). The control panel will also automatically grease the rollers while the pellet press is working and automatically supply oil to the die at the end of a shift so the die is ready to start up easily next time.
  • Total power requirement 23KW.
